Description
Micasensor™ provides the following filters and cartridges for airborne activity monitors:

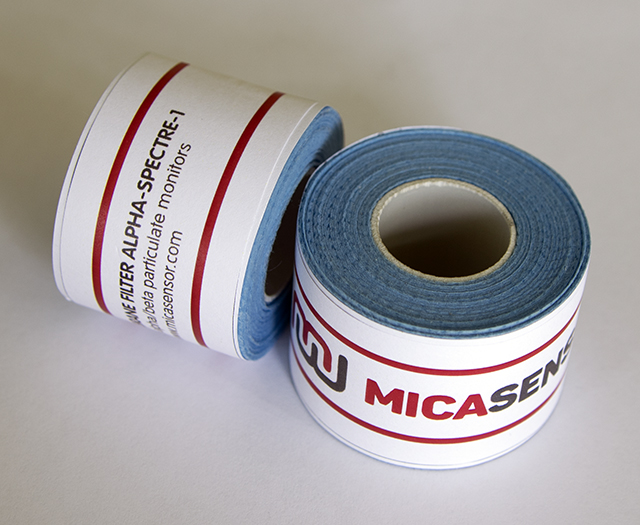

- Alpha-Spectra-1 PTFE membrane filter rolls. Specially designed for miCAM-100™ continuous air monitors. The standard size is 35 mm x 12 m filter rolls but can be manufactured in various sizes and length by the customer request;
- Alpha-Spectra-d25 PTFE membrane filter cards. Designed for personal air monitors and dosimeters miCAM-micro™. The standard size is 25 mm diameter but can be also manufactured in various sizes. Packaged in boxes of 100 pcs. each;

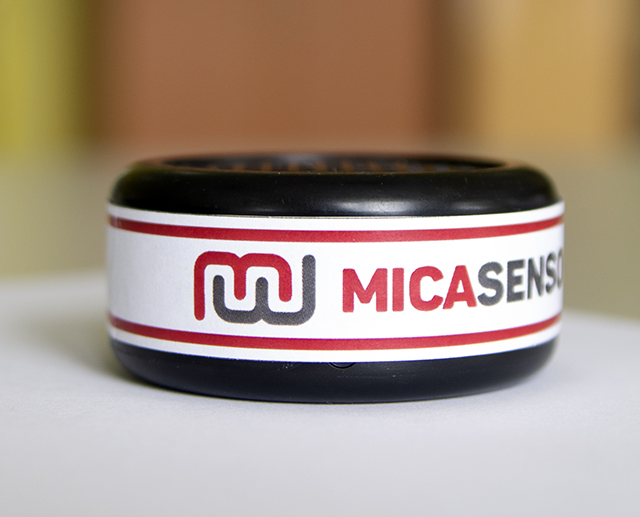

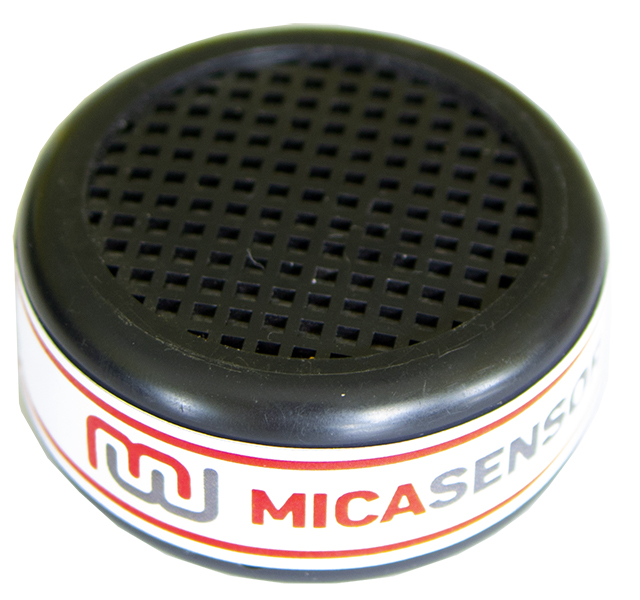

- KSI-2 radioiodine cartridge. Designed for the sampling of airborne concentrations of radioiodine and other gaseous iodine compounds. Fits Micasensor m-Iodine-101™ but can be also used with any standard sampling or monitoring equipment designed for 2.27” radioiodine cartridge.

Specifications
Type	PTFE Membrane
Standard size	35 (±1) mm width, 12 (±0.3) meter length
Resistance to air, at linear flow velocity 1 cm/s, not more	50 Pa
Surface density of the collection layer	1 g/m
Breaking load	10 N
Fiber diameter of the surface layer	80-150 nm
Operation temperature	from -60 to +100 °C

SPECIFICATIONS
Type:	PTFE Membrane
Standard size	Ø25 (±0.5) mm diameter
Resistance to air, at linear flow velocity 1 cm/s, not more	50 Pa
Surface density of the collection layer	1 g/m
Fiber diameter of the surface layer	80-150 nm
Operation temperature	from -60 to +100 °C
Standard package	100 pcs. carton box

Specifications
Type	TEDA treated activated charcoal
Dimensions	Ø58.3(±0.3) x 27(±0.3) mm
Resistance to air, at recommended air flow, not more	1.3 kPa
Recommended air flow	20 LPM
Max. air flow	100 LPM
Weight	50 g
Operation temperature	from -20 to +60 °C
